5000 Liter HOWO 4x4 Off Road AWD Aviation Refueler Truck

Brand Name : CLW

Model Number : CLW5162WYT

Certification : CCC,ISO

Place of Origin : Suizhou,China

MOQ : 1 Unit

Price : 12960 usd/unit~42560 usd/unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300 units/per month

Delivery Time : 20~30 working days

Packaging Details : Naked with waxing before shipment

Tank volume : 50000l~12000L,5m3,5K liters,5000liters,10cbm

Fuel type : Diesel engine 266hp

Drive wheel : 4X2,6X4,8X4,4X4,6X6,8X8

Tank material : Carbon Steel,Q235 Carbon Steel/ Stainless Steel

Transmission type : Manual, Automatic

Wheelbase : 4600mm

Product name : Fuel Tanker Truck, fuel delivery truck, Fuel Tank Truck,oil tanker truck

Storage : edible oil,disel,gasoline,petroleum,oil,chemical,aviation fuel

Conditon : Brand new

Engine capacity : 5.19L,5190ml

Color : Customer's Require, According to customer's requirements, Per your request, Opitional, paint according to your requirements

Emission standard : Euro 5/6

Steering : Left hand drive or right hand drive

Contact Now

HOWO 4x4 Off Road AWD Aircraft Aviation Refueler Truck 5000 Liter Fuel Tanker Truck

Description

Fuel tanker truck(also called fuel truck,fuel tank truck,fuel delivery truck,fuel oil delivery truck,gallon fuel truck,petrol tanker truck,oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene,avialtion fuel and so on.The tank is equipped with multi-channel anti-wave bulkheads, which makes the tank body strong, stable and the vehicle carried safely and steadily. it can be made of carbon steel, aluminum alloy. stainless steel, The tank has built-in multiple reinforced wave partition plates and the bottom of the partition plate has through holes to reduce the impact of fuel oil in the tank during driving and improve the strength of the tank body.

1. Purpose of howo off road fuel tanker truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Optional for Refueling System of Ihowo off road fuel tanker truck: Oil pump, Hose reel with filling gun/Oil dispenser machine

3. Tank shape of howo off road fuel tanker truck: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
4. Refueling machine of Ihowo off road fuel tanker truck: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
5. Optional parts of howo off road fuel tanker truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

Feature--Stable and reliable howo off road 4X4 truck chassis suitable for tough road or desert;--High quality carbon steel material;--Independent compartment for different types of fuel types;--Serveral baffles inside tank to improve safety performance;--High pressure gas leakage test to ensure tank safety;

-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

Specification
SPECIFICATION
Dimension(Lx W xH)(unloaded)(mm) 8268×2496×3200
Tanker Capacity 5CBM or 10 CBM
No. Of Compartment TWO or more
Botton Valve WITH
Approaching angle/Departure angle(°) 15/18
Overhang(front/rear) (mm) 1500/2090
Wheel base (mm) 4600
Max speed(km/h) 102
Curb weight(kg) 8250
Engine Model WD615.62,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection
Fuel type Diesel
Power, max(kw/rpm) 266HP
Emission EUROII
Fuel tanker capacity(L) 400L aluminum oil tank
Transmission Model HW13710, 10 speeds forward and 2 reverse
Brake system Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Steering system Model ZF8198
Front axle HF7
Rear axle ST16
Tire 1200R20
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500kw

Starter 7.5Kw/24V
Cab HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically til-table to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with cased-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.

Key word: off road fuel truck,full wheel drive oil truck,howo 4X4 fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck,5000 liters fuel truck,5000liters fuel truck,howo tanker truck,AWD fuel refueler truck,AWD fuel bowser

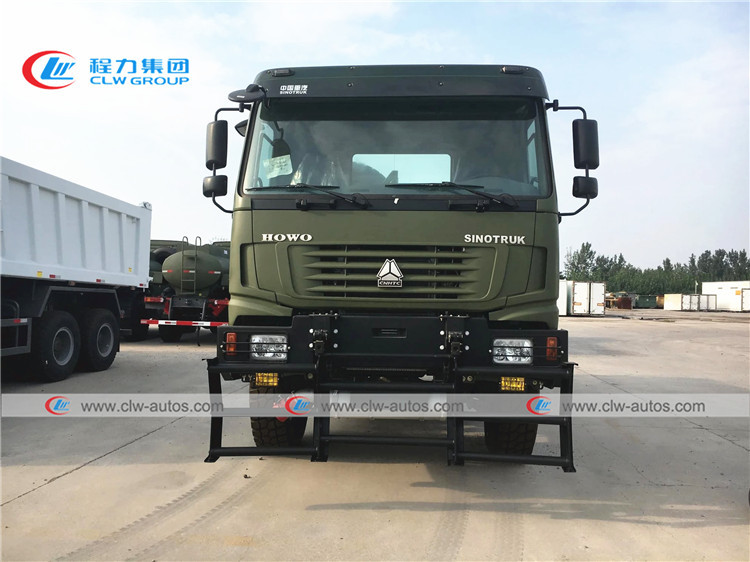

Reference pictures

5000 Liter HOWO 4x4 Off Road AWD Aviation Refueler Truck5000 Liter HOWO 4x4 Off Road AWD Aviation Refueler Truck5000 Liter HOWO 4x4 Off Road AWD Aviation Refueler Truck

5000 Liter HOWO 4x4 Off Road AWD Aviation Refueler Truck

5000 Liter HOWO 4x4 Off Road AWD Aviation Refueler Truck
