24cbm 12mt Sinotruk HOWO 6X4 Gas Cylinder Filling Truck

Brand Name : CLW

Model Number : CLW5256GS

Certification : ASME,CCC,BV,SGS

Place of Origin : Suizhou, China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Unit/Month

Delivery Time : 30-35 working days

Packaging Details : naked,waxed,bulk ship,ro-ro

Chassis Brand : Dongfeng, Sinotruk HOWO, FAW, Foton, Isuzu, etc.

Engine Power : 336HP

Tank Shape : Horizontal Cylinder Shape

Tank Capacity : 24cbm

Tank Loading Capacity : 12ton

Tanker Material : Q345R, Q370r, Q420r, SA516

Tank Thickness : 12mm

Design Pressure : 1.61MPa, 16.1 Bar /Psi

Production Standard : Hydraulic Pump with Pto Powered

Level Meter : Rego Rochester or Others

Flow Meter : Displacement Flow Meter

Corrosion Allowance : 1.0mm

Logo and Pattern : As customer's request

Warranty : 1 Year

Contact Now

Sinotruk HOWO 6X4 24cbm 12mt Gas Cylinder Car Filling Trucks LPG Bobtail Truck for Sale

Product Description

1. Howo Truck: 336HP Cummins Engine, 10 Forward & 2 Reverse Gear.

2. Tank Design: Horizontal cylinder Type, Bullet Tank, with elliptical or hemisphercial dish end.

3. Tank Test: 100% Radio Radiographic Test, Magnetic Power Test, Water Pressure Test, Air Tightness Test.

4. Dispensing System: 2" Hyrdaulic Truck Pump, 2" Flow Meter, 15meters Hose Reel for commercial Fillings.

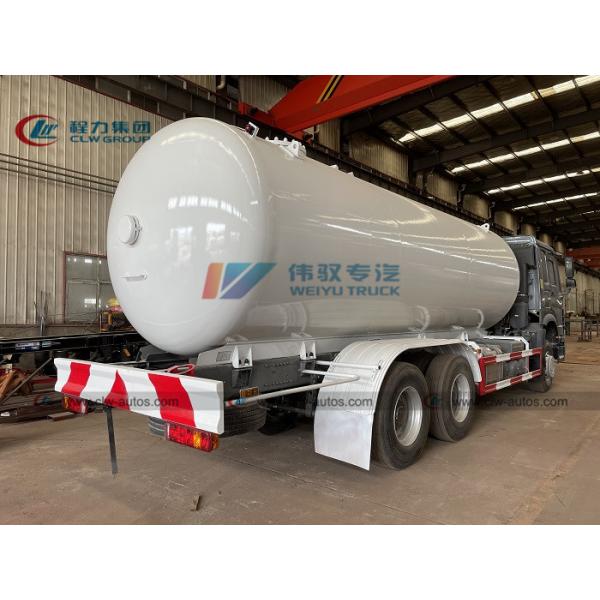

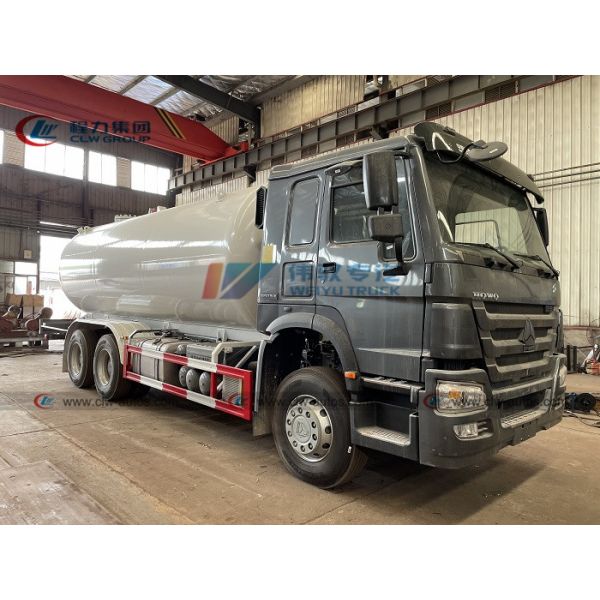

Reference Photos

24cbm 12mt Sinotruk HOWO 6X4 Gas Cylinder Filling Truck

Product Specification

Item No.	Parameters
Overall Dimension	10590* 2495* 3350mm
Gross Vehicle Weight	24420kg
Curb Weight	14210kg
Wheel Base	4800+1350mm
Cabin	Left Hand Driving, 2 Passengers Allowed, with Air Conditioner
Engine	WD615.62 Diesel Engine, 6 Cylinder in line. Four Stroke.water-cooling,supercharged and mid-cooling,Direct injectio
Engine horsepower	336HP Euro II
Max Driving Speed	90 km/h
Gear Box	10 Forward Gear & 2 Reverse Gear
Tire	12R22.5 Tubeless Tire (10 pieces with one spare)
Tank Capacity	24 CBM / 24,000 Liters
Filling Weight	10000kg
Filling Content	Liquefied Petroleum Gas (Propane)
Tank Material	Q345R, 10mm Thickness for Tank Body & End plate.
Standard Equipment	1 Safety Valves,1 Ball floating Level Gauge, 1 Pressure Gauge, 1 Thermometer, 2 Emergency Shut-off Valve, 1 Tool Boxes, Anti-static Grounding Tape, with 1 valve boxes,
Specification	Designed Pressure: 1.61Mpa / 16.1 Bar Hydraulic Test Pressure: 2.21 Mpa / 22.1 Bar Air Tightness Pressure: 1.61Mpa / 16.1Bar Medium Density: 500-590 kg/m3 Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm
Filling System	Hydraulic Drive 2" Truck Pump. Liquid Control Flow Meter to Record Filling Volume LPG Filling Hose for Cylinder

Two Types of Dispenser for Optional

Manufacturing Process

24cbm 12mt Sinotruk HOWO 6X4 Gas Cylinder Filling Truck

Sales Service

1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of LPG products I can order from your company?

A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?

A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?

A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.

Q4: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
